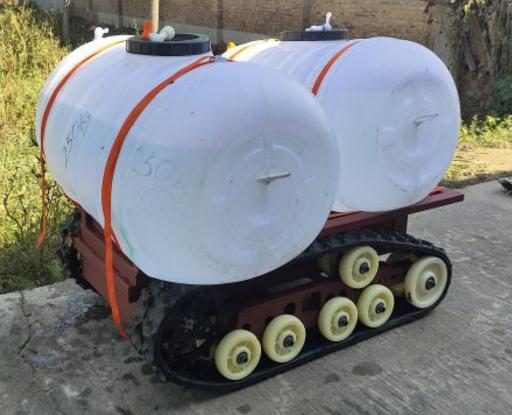

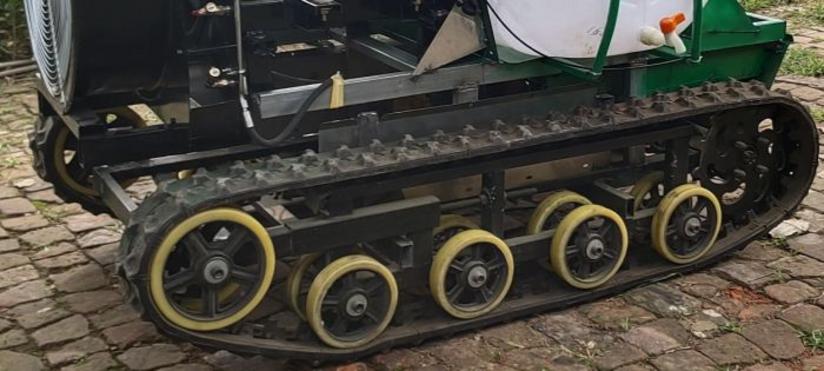

​#2 ​​​Model ZY-M heavy-duty metal robot tank chassis

• ​Dimension (LxWxH): 1670 x 1010 x 390mm

• Max load: 200-300kg.


• Motor: 48V, 1.8/2.5kW DC motor.

• Width of rubber track: 150mm


• Self weight: 180kg (v).


• Speed: 9km/hour

• Application: Heavy-duty off-road carrying

• Adopting worm reducer or direct reducer.


• Lead-acid battery or Lithium-ion battery as per the customer’s requirement.


• The robot chassis is specially designed for loading and carrying.

• With or without remote control.


• ​Zero turning radius differential steering system.


• Compared with ZY-S, ZY-M has a larger size frame.


• Packing size (Inside)：1730x1070x450mm, gross weight: 216kg. (v)


​All of our rubber track products are produced in China, we provide worldwide shipping service, whether by air, sea, or courier.  If you need shipping to the door, please leave your address/port when you send an inquiry to us.

​HEAVY-DUTY METAL ROBOT TANK CHASSIS

#1 ​​​Model ZY-S heavy-duty metal robot tank chassis

• ​Dimension (LxWxH): 1180 x 710 x 340mm

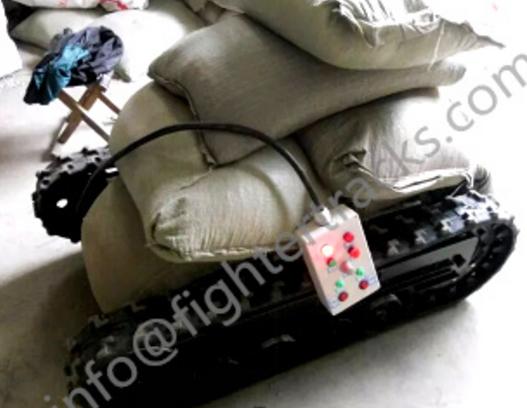

• Max load: 300kg (besides grain bags 50kg x 6 bags it can bear 2 adults additionally. 300kg is not the limit. It is a heavy-duty chassis suitable to transport stuff off-road.


• Width of rubber track: 100mm


• Motor size: 2kW

• Weight: 110kg


• Application: load-bearing and transportation off-road

• Adopting worm reducer.


• ​Zero turning radius differential steering system.


• Can be equipped with a Lithium-ion battery as per the customer’s requirement.


• The robot chassis is specially designed for heavy loading and carrying.
