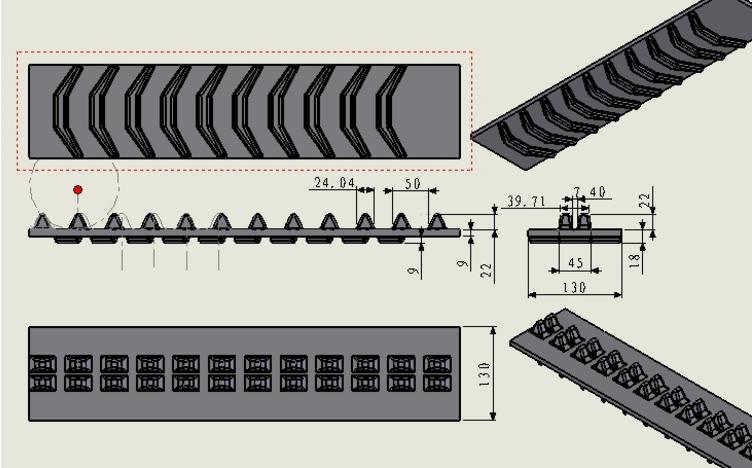

Specifications for rubber track FT-130A
Width: 130 mm
Standard circular length: 2650 mm
Pitch: 50 mm
Link: >=50
Reinforcement material: Kevlar
Applications: robot chassis, rubber track undercarriage.
Standard drive sprockets for rubber track FT130A
Material: UHMPE or Nylon
Outside diameter: 214 mm (14 teeth).
2023 Aimipaer (Shijiazhuang) Technology Co., Ltd
All rights reserved
If you are going to build up your own tracked robot base and are interested in idler wheels as well, please go to the idler page below:Idlers for the tracked robot base.
Email: info@f-tracks.com
Please leave your message here, we will give you a reply within 24 hours!
2023 Aimipaer (Shijiazhuang) Technology Co., Ltd
All rights reserved
All of our rubber track products are produced in China, we provide worldwide shipping service, no matter by air, sea, or courier. If you need shipping to the door, please leave your address/port when you sent an inquiry to us.
FIGHTERTRACKS
ROBOT RUBBER TRACK
MODEL: FT130A
