FIGHTER TRACKS
Model #2: RT-150B
Track width: 150 mm
Standard circular length: 2200 mm （ Other lengths can be made by order.）
Min. circular length: 1600 mm
Pitch distance: 58.6 mm
Reinforcement material: Steel wire, without iron core.
Max loading: 120kg

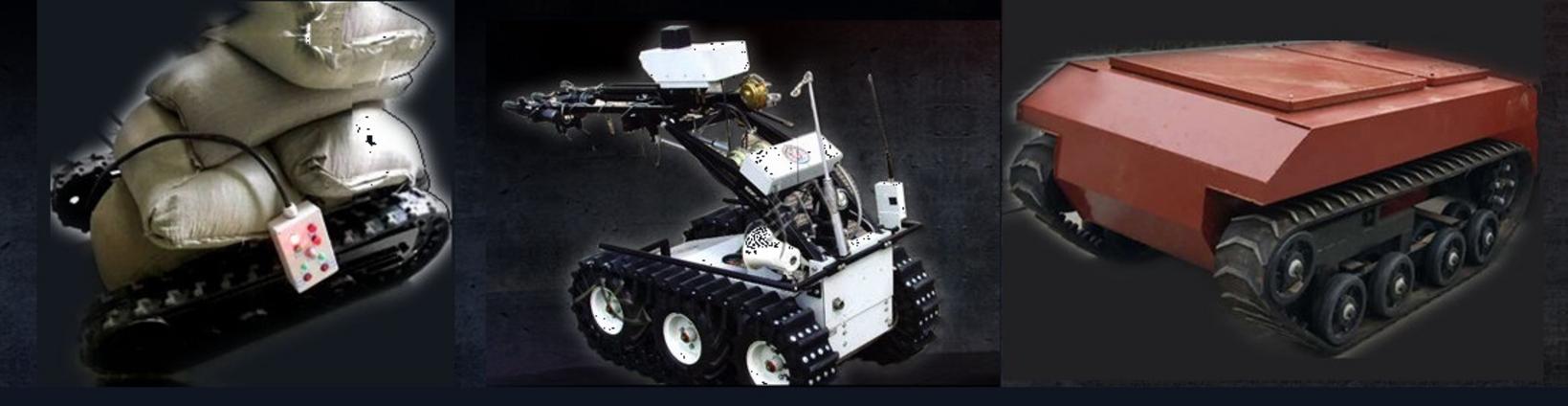

Applications: All-terrain robot chassis, rubber track undercarriage, robot base, robot crawlers.
Model #1: RT-150A
Track width: 150 mm
Standard circular length: 2200 mm （ Other lengths can be made by order.）
Min. circular length: 1600 mm
Pitch distance: 58.6 mm
Reinforcement material: Steel wire, without iron core.
Max loading: 120kg
Applications: All-terrain robot chassis, rubber track undercarriage, robot base, robot crawlers.
If you are going to build up your own tracked robot base and you are interested in idler wheels as well, please go to the page of idler below: Idlers for the tracked robot base.
Sprocket: 11 teeth, diameter of inner circle of teeth: 223mm.
Material: steel with black boiled treatment).
Model #3: RT-150C (Heavy-duty rubber track)
Track width: 150 mm
Standard circular length: 2736 mm （ Other lengths can be custom-made by the order.）
Pitch distance: 72 mm
Reinforcement material: Steel wire, with iron core reinforcement.
Max loading: 300kg
Applications: All-terrain robot chassis, rubber track undercarriage, robot base, robot crawlers.
Rubber tracks & Sprockets - 150mm width
Please leave your message here, we will give you a reply within 24 hours!
Totally we have 3 types of 150mm width rubber tracks & Sprockets

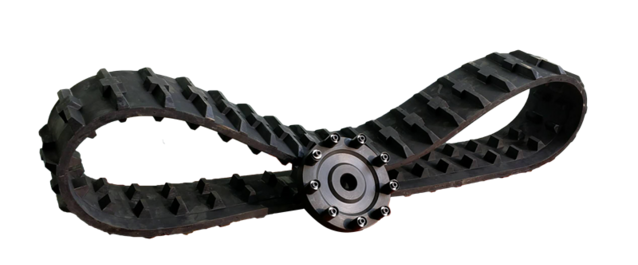

Drive sprockets for RT-150A & RT150B are available
8 teeth, diameter 140mm
12 teeth, diameter 210mm
Material: UHMPE and steel.
