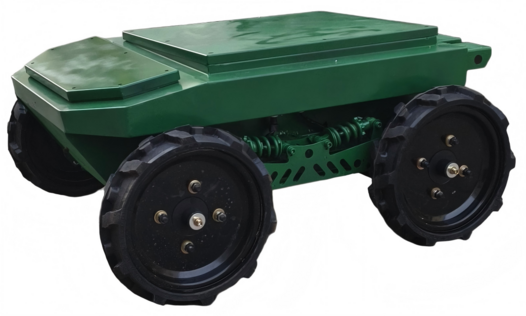

Shooting range robotic target carrier
Tracked robot base supplier factory in China

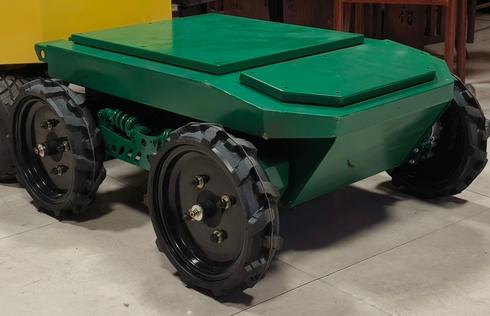

armored robot target carrier for live fire training

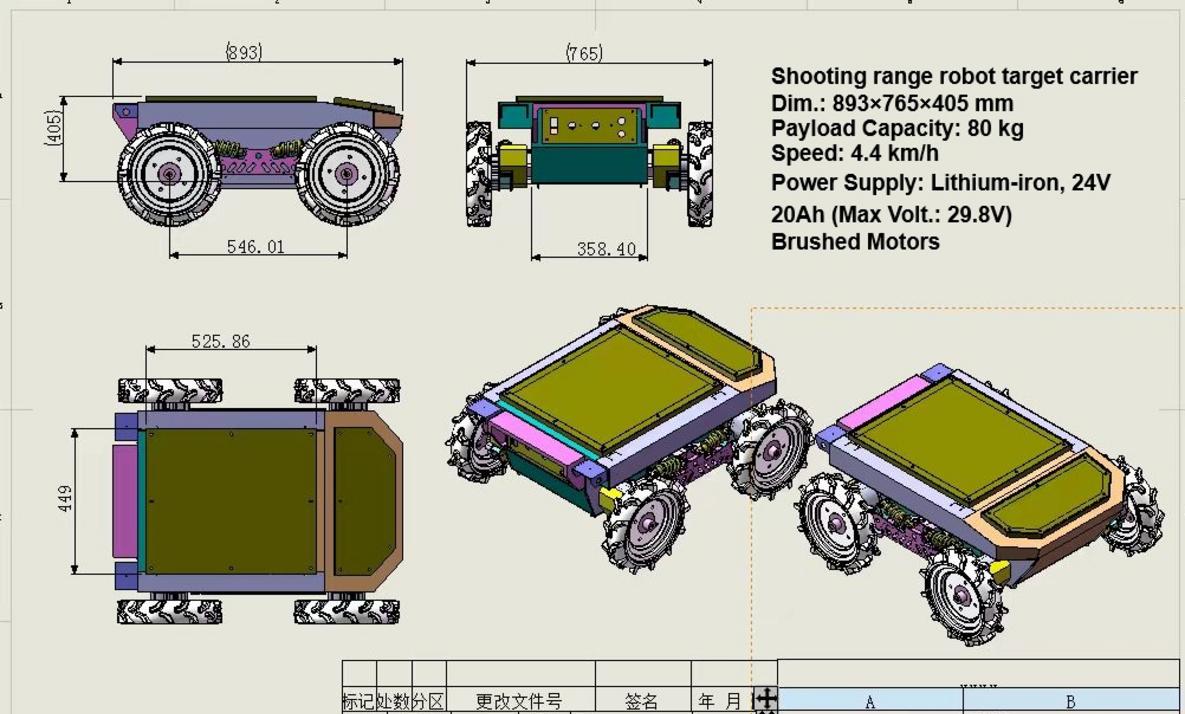

 Quick Specs & Features


  • Size: 893×765×405 mm
    This low profile and compact design makes it a harder target.


  • ​Color: green, desert color.


  • Payload: 80 kg. This weight handles more than most mid-range carriers. This chassis works with steel targets, Paper targets, pop-up targets.


  • Speed: 4.4 km/h
    With this speed, shooting trainee can track the moving target - this speed is not too fast and too slow.


  • Battery: 24V 20Ah LiFePO₄ (not exceeding 29.8V)
    This type of battery is safer than ternary Lithium battery. This battery capacity can run about 2–3 hours (estimated). For all-day shooting training, please select 30Ah or even higher capacity battery.


  • Design: brushed motors + independent suspension

  • 4WD motor and independent suspension means smoother, more stable on hard surfaces than to 2-wheel models.

  • Brushed motors are cheaper and easier to maintain.


  • Running method: wheel-based
    It's lighter, quieter, and easier to clean or fix than tracked carriers.


  • Control type is RC (Remote controlled). There are 2 models to select, one is simple single-hand, the other is double-hand version.


  • Upgraded version:

  • Tracked version – for rougher terrain such as mud, sand, high grassland, river land, hills.

  • Smarter tech is added to robot such as GPS navigation with higher cost.

armored robot target carrier

All of our rubber track products are produced in China,

we provide worldwide shipping service, no matter by air, sea, or courier.  If you need shipping to the door, please leave your address/port when you sent an inquiry to us.

Armored robotic target carrier

Model: BC893

Shooting range robot target carrier, tactical moving target platform, 4WD robotic target chassis

Users need to add the armor and target holder to the chassis. The armored robotic carriers need to be able to hold the armoring weight (to protect against bullets).
