RXR-MC80BD-GT1  Firefighting robot / fire extinguisher robot - explosive version

Please leave your message here, we will give you a reply within 48 hours!

RXR-M40D-GT1 Firefighting robot / fire extinguisher robot

1. Brief introduction of Fightertracks tracked Firefighting robot / fire extinguisher robot

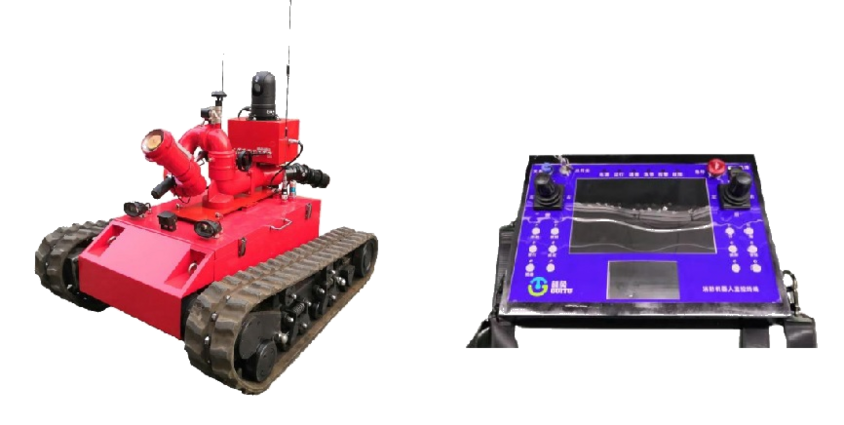

RXR-M40D-GT1 is a tracked Firefighting robot/fire extinguisher robot with a robot body, a firefighting water cannon, a remote control terminal, and an integrated control cloud platform.
tracked Firefighting robot/fire extinguisher robot fighter tracks Fireman robot for fire suppression is known for its stable performance, advanced technology, reliable quality, and easy assembly and disassembly. Each unit undergoes professional calibration and performance testing. Powered by a DC motor and equipped with an engineering track chassis, the robot is highly maneuverable, capable of turning in place, climbing slopes and stairs, and has strong off-road capabilities.

It has a high-flow firefighting water cannon and foam cannon, offering long-range shooting, flexible control, and easy deployment.


2. Functional characteristics of Chassis for Fightertracks tracked Firefighting robot

The chassis and electrical control adopt a fully modular structure for easy maintenance and repair.
The vehicle body is made of 16mm steel in a sealed structure, making it suitable for various complex environments.
The tracks are external high-temperature resistant and flame-retardant rubber with internal metal teeth.
Equipped with a high-performance mobile water cannon, it has dual water supply hoses and a design to prevent hose entanglement.
It has strong traction and can pull a filled 200m long φ80 water hose.
The system is designed to withstand high temperatures and has a self-sprinkler cooling device.


3.  Functional characteristics of water monitor for Fightertracks tracked Firefighting robot

The firefighting cannon can be remotely controlled for rotation, elevation, and automatic sweeping, providing high flow, long-range, and multiple spraying modes with the ability to switch between water and foam.
It has a high-definition digital wireless video transmission system for remote real-time video monitoring.
It adopts frequency-hopping wireless communication technology, enabling long communication distances and strong anti-interference capability.
It has strong obstacle-crossing capabilities, capable of climbing steep slopes at large angles.
It is highly maneuverable with fast adjustable speeds.
Equipped with a 360°panoramic camera for comprehensive monitoring without blind spots.
The power drive system is efficient and reliable, equipped with a planetary gear reducer for high efficiency and a brake unit.
It can be conveniently integrated with the control cloud platform (optional).

4. Technical specifications for tracked Firefighting robot - RXR-M40D-GT1

Total Weight (kg): 650
Dimensions (mm): 1400×1000×1200
Drive Motor: 3 kW/48V×2
Transmission: Planetary gear reducer
Battery: 48V/45Ah lead-acid battery
Working Lights: 2×30W LED lights
Endurance (h): 2 (continuous driving), 8 (continuous operation while stationary)
Ground Clearance (mm): 95
Obstacle Crossing Height (mm): 290
Gradient Ability (%): 83.9
Travel Speed (km/h): 0-4 infinitely variable
Traction Force (N): 5200
Cooling System: Natural air cooling

Water Mist Self-protection: Automatic water mist protection system for the vehicle body
Control Method: Wireless remote control (open area ≥1000m, using digital video transmission and frequency hopping data transmission)
Water Cannon Flow Rate (L/s): 40 (optional: 80)
Pressure (MPa): 0.8-1.2
Water Cannon Range (m): 50
Elevation Angle (°): 0~80
Rotation Angle (°): Left 45, Right 45
Image Configuration: 360° panoramic camera, front and rear driving cameras
Operating Temperature (℃): -20~60
Quick Maintenance: Average fault repair time does not exceed 15 minutes.


5. Application Scenarios for tracked Firefighting robot - RXR-M40D-GT1


The RXR-M40D-GT1 tracked firefighting robot is suitable for firefighting in various scenarios, including:

Fires in public (railway) tunnels
Fires in subway stations and tunnels
Fires in underground facilities and large-scale warehouses
Fires in large logistics warehouses
Fires in petrochemical depots and refineries
Fires involving unknown hazardous materials, where firefighting vehicles and personnel may have difficulty accessing
Firefighting in industrial plants and residential buildings

The robot is designed to tackle fires in locations where traditional firefighting vehicles and personnel may face challenges in reaching or extinguishing the fire effectively. Its mobility, remote control capabilities, and powerful water cannon make it a valuable tool for firefighting in these challenging environments.

All of our rubber track products are produced in China, we provide worldwide shipping service, no matter by air, sea, or courier.  If you need shipping to the door, please leave your address/port when you sent an inquiry to us.

chassis de robot

RXR-M40D-GT1 Firefighting robot / fire extinguisher robot - Standard version

​​  ​  All-terrain Vehicle

tracked firefighting robot Robotic fire rescue

WhatsApp

          CellWhatsapp: +8615350592434

​​Email: ​​info@f-tracks.com

​​​ 2023 Aimipaer (Shijiazhuang) Technology Co., Ltd
    All rights reserved

Site map

1. Brief introduction of RXR-MC80BD-GT1  Firefighting robot / fire extinguisher robot - explosive version

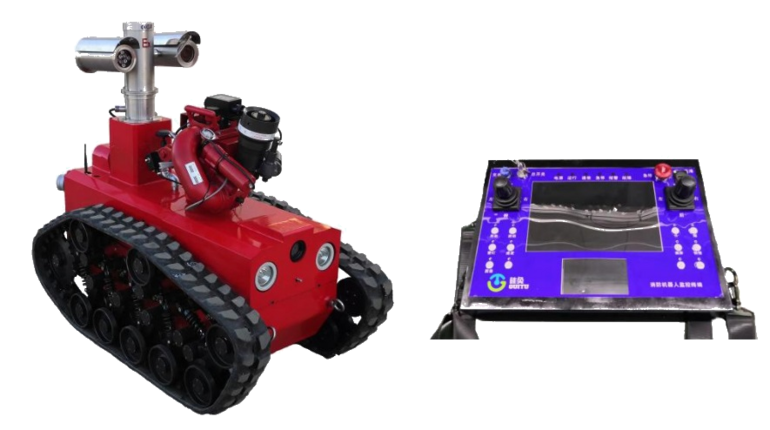

RXR-MC80BD-GT1 tracked firefighting robot consists of the robot body, firefighting water cannon, remote control terminal, and integrated control cloud platform.
It is characterized by stable performance, advanced technology, reliable quality, and convenient disassembly and assembly. Each product undergoes professional calibration and performance testing.
Powered by a DC motor and equipped with an engineering track chassis, it offers excellent maneuverability, including on-the-spot steering, climbing slopes and stairs, and strong off-road capabilities. The robot is also equipped with a high-flow firefighting cannon, which has a long-range, flexible control, and easy deployment.

2. Functional characteristics of Chassis for RXR-MC80BD-GT1  Firefighting robot / fire extinguisher robot - explosive version

   The chassis and electrical control of the RXR-MC80BD-GT1 tracked firefighting robot feature the following:

- Full modular structure for easy maintenance and repair.
- Waterproof and explosion-proof design, with a 10mm steel sealed body structure suitable for various complex environments.
- Tracks made of external high-temperature resistant and flame-retardant rubber, with an internal metal framework.
- Equipped with a high-performance mobile water cannon, supplied by dual water hoses and designed to prevent hose entanglement.
- Strong traction capability, capable of pulling a fully filled 100m long φ80 water hose.
- The system is designed to withstand high temperatures and includes a self-sprinkler cooling device.

3.  Functional characteristics of water monitor for RXR-MC80BD-GT1  Fire fighting robot / fire extinguisher robot - explosive version

- Remote control of the firefighting cannon's rotation, elevation, and automatic sweeping, with high flow rate, long-range, and multiple spraying modes for switching between water and foam.
- High-definition digital wireless video transmission system for remote real-time video monitoring.
- Utilizes frequency hopping wireless communication technology, enabling long communication distances and strong anti-interference capability.
- Excellent obstacle-crossing ability, capable of climbing steep slopes at large angles.
- High maneuverability and fast movement speed, with adjustable speed.
- Equipped with a 360° panoramic camera for comprehensive monitoring coverage.
- The power drive system is efficient and reliable, equipped with a planetary gear reducer for high efficiency and with a braking unit.
- Easy integration with the integrated control cloud platform (optional).

4. Technical specifications for RXR-MC80BD-GT1 Firefighting robot / fire extinguisher robot - explosive version

Total Weight (kg): 685
Dimensions (mm): ≤1645×805×1315
Drive Motor: 3kW/48V×2
Battery: 48V/105Ah lithium battery
Working Lights: 2×30W LED lights
Endurance (h): 4 (continuous driving), 10 (continuous operation while stationary)
Ground Clearance (mm): 130
Obstacle Crossing Height (mm): 180
Gradient Ability (%): 75
Travel Speed (km/h): 0-3.6 infinitely variable
Water Mist Self-protection: Automatic water mist protection system for the vehicle body
Control Method: Wireless remote control (open area ≥1000m)

Water Cannon Flow Rate (L/s): 80
Pressure (MPa): 0.68-1.0
Water Cannon Range (m): ≥80
Elevation Angle (°): 0~80
Rotation Angle (°): Left 45, Right 45
Image Configuration: 360° panoramic camera, front and rear driving cameras
Gas Detector: Detects parameters such as ammonia (0-100PPM), hydrogen sulfide (0-100PPM), oxygen (0-25%vol), carbon monoxide (0-1000PPM), methane (0-100%LEL), carbon dioxide (0-5%vol), etc. (customizable)
Temperature Detection: -50~500℃
Explosion-proof Marking: Ex d e ib mb IIB T4 Gb
Protection Level: IP65
Operating Temperature (℃): -20℃~60℃


5. Application Scenarios for RXR-MC80BD-GT1 Firefighting robot / fire extinguisher robot - explosive version

   The RXR-MC80BD-GT1 tracked firefighting robot is suitable for the following firefighting scenarios:
   Fires in public (railway) tunnels
   Fires in metro stations and tunnels
   Fires in underground facilities and large-scale warehouses
   Fires in large logistics warehouses
   Fires in petrochemical depots and refineries
   Fires involving unknown hazardous materials or situations where access is difficult
   Fire suppression in industrial buildings and residential structures.

   In summary, the RXR-MC80BD-GT1 tracked firefighting robot offers flexible mobility and efficient firefighting capabilities, making it suitable for various fire scenarios. It provides a reliable auxiliary tool for firefighting operations.
