Performance
Detailed parameters
1.
  Machine size
  3550*1380*1750mm (including spray) handle)
2.
Wheel distance
1200mm
3.
Axle distance
1650mm
4.
Effective height off the ground
5.
Engine type
3C100
6.
Nominal horsepower/speed
25HP/3600r/min
7.

Transmission type

 HST+4 speed gear

8.
Main hydraulic pump
LT17, with double gear pump
9.
Tire model
120/90-26 special wheel for paddy field
10.
Veer form
Full hydraulic two wheel/four wheel steering
11.
Drive form
4WD
12.
Work speed
0-5KM
13.
Max speed
0-11KM
14.
Retrosystem
Hydrostatic braking
15.
Spray rod part
Fan nozzle with spray amplitude of 12 meters and 110°
16.
Spraying pump
Three cylinder diaphragm pump or piunger pump
17.
Driving type
Manual/remote control driving
18.
Walking system control mode
Pwm input
19.
Steering system control mode
Pwm input
20.
Whole machine weight
950kg

在此键入段落。

                     800mm

All of  our rubber track products are produced in China, we provide world wide shipping service , no matter by air, sea or courier.  If you need shipping to door, please leave your address / port when you sent inquiry to us.

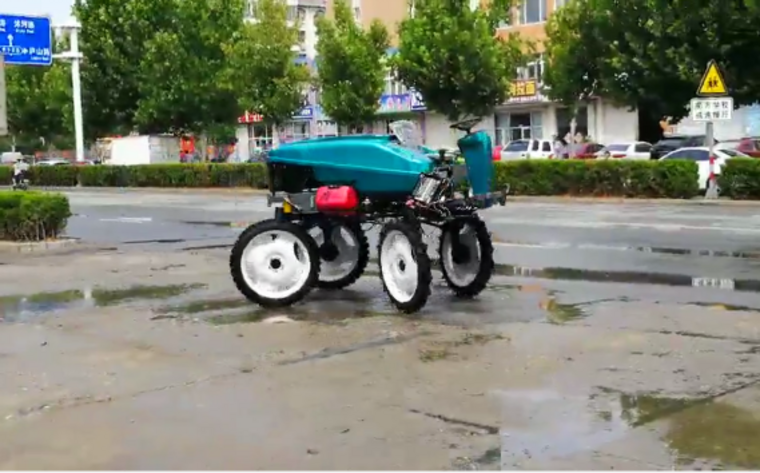

Remote control high clearance boom sprayer

  ​  All-terrain Vehicle Technology

Whatsapp/Mobile: +86 15350592434

chassis de robot

​​info@fightertracks.com

  ​FIGHTER TRACKS​


Product name:                                                  Specifications:

Upland gap planter                                              3WP-500

Optional:

Spray assembly and accessories                            custom

Fertilizer spreader assembly                                  custom

Unmanned remote control assembly                    custom

Invoice cost                                                            custom
