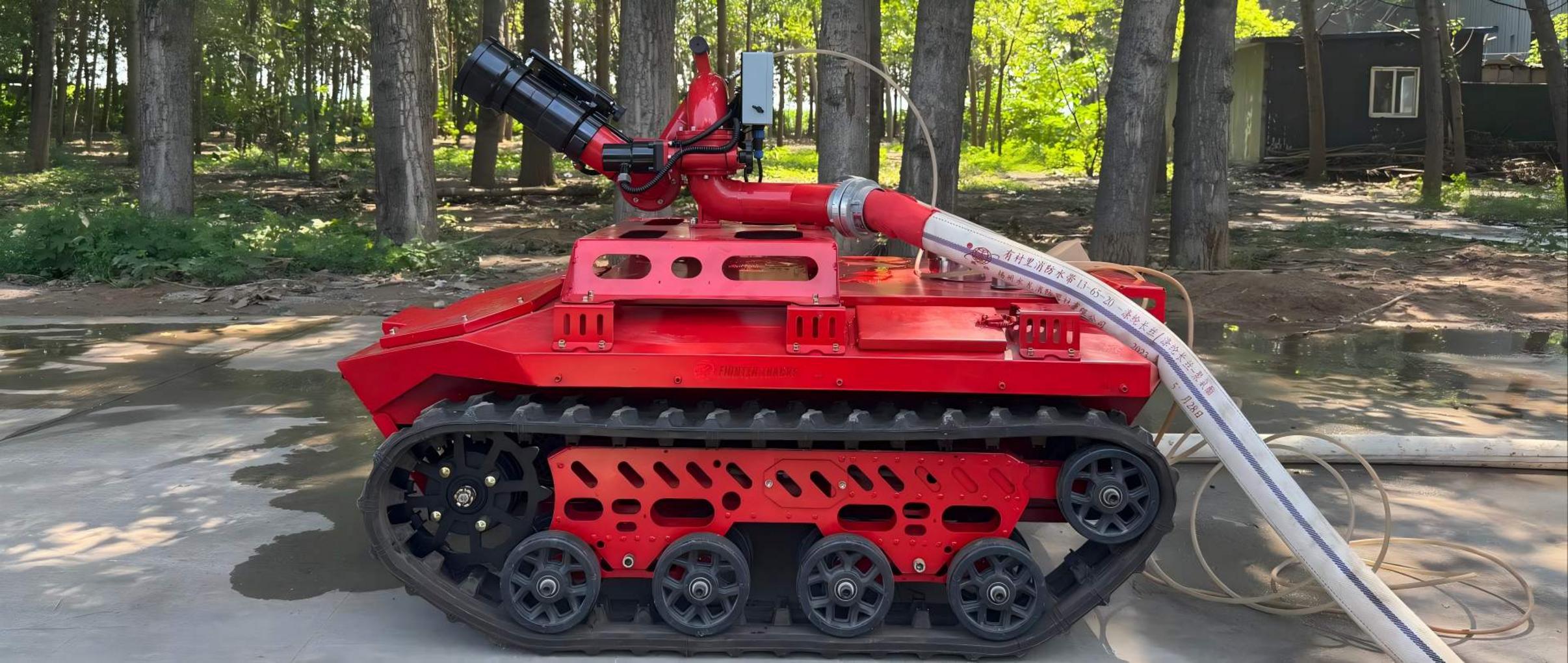

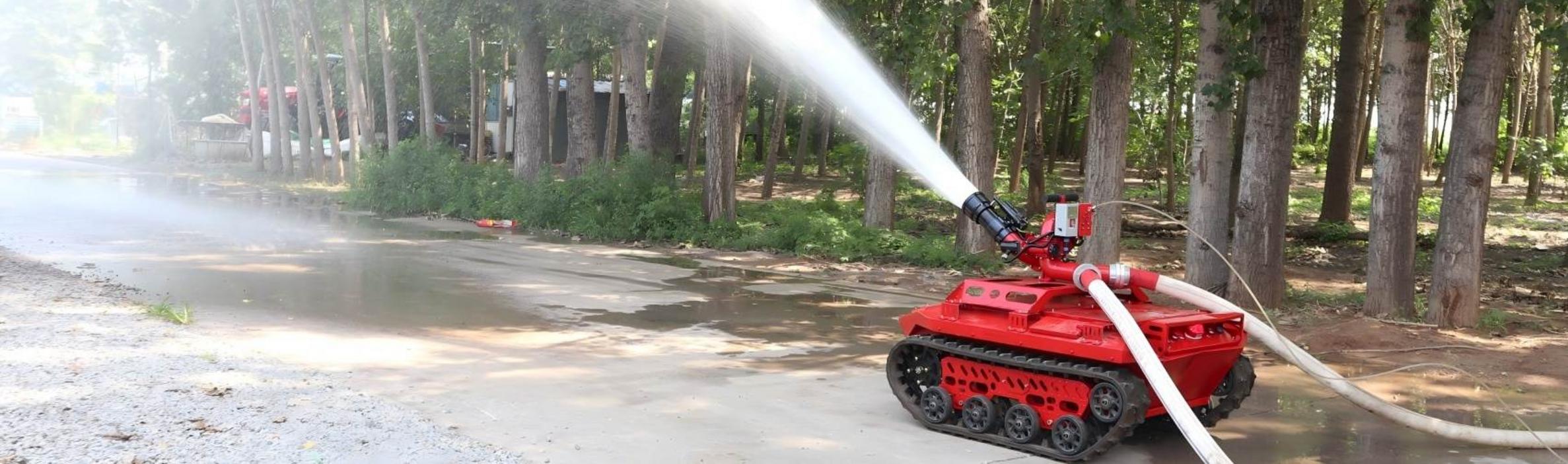

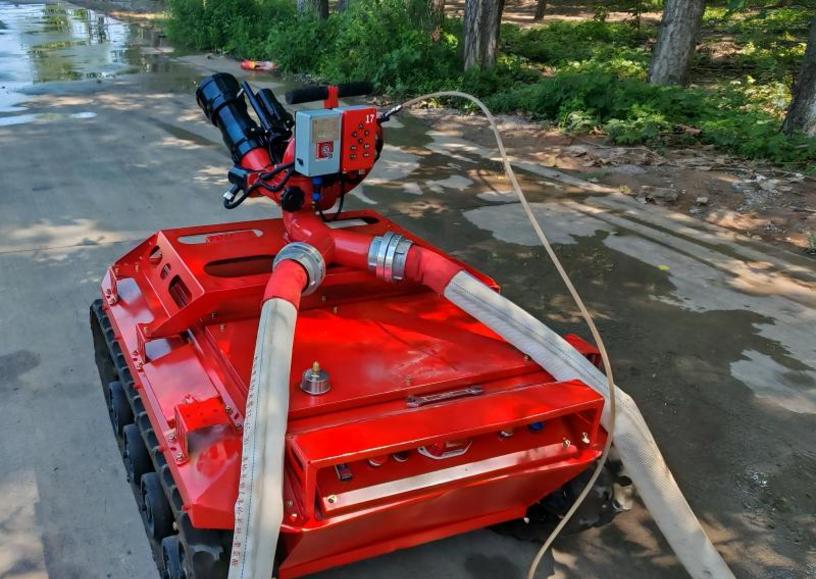

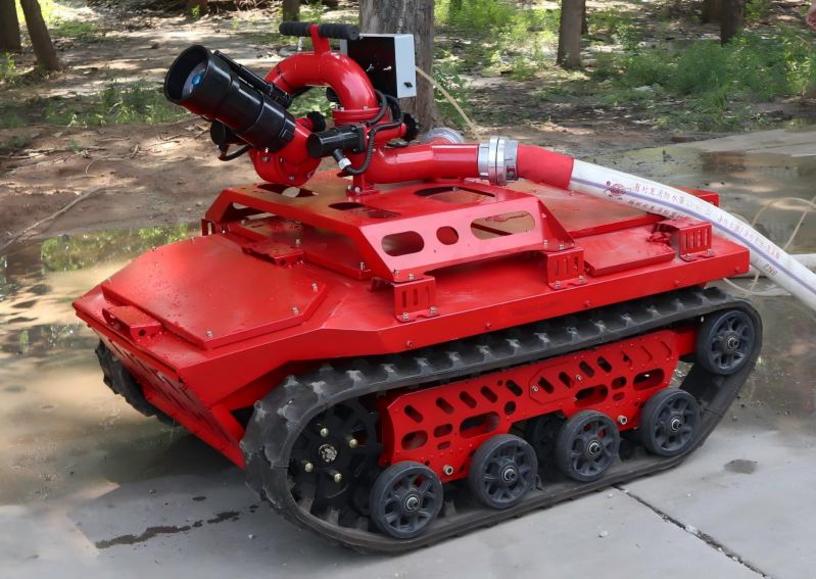

​​​Remote Controlled RC Tracked Fire Fighting Robot

​​Model: FR-136

      1. Specification for the tracked robot base for the firefighting robot-

• ​Dimension (LxWxH): 1360 x 960 x 450mm

• Max load: 150kg


• Width of rubber track: 150mm


• Weight: 160kg


• Application: Fire-fighting robot


• Rubber robot treads

• Adopting a worm reducer.


• Can be equipped with a Lithium-ion battery as per the customer’s requirement.


• Obstacle Climbing Capability.

• ​2. Specification for high-capacity Electric RC Control Fire Fighting Monitors

• Flow Rate: 20-80 L/S

• Working Pressure: 0.8-1.2MPa

• Range: ≥50m

• Water Pattern Options: Elevation angle：+30°-+70°

• Power Source: Electric (Battery operated), 24V

• Control: Remote control with adjustable flow and pattern settings

• Mobility: Mobile platform with smooth movement controls

• Horizontal turning angle: ≥90°

• Spray angle：≥90°

• Water inlet：2X65 ​

​Fightertracks is not only a rubber track products manufacturer, but also a rubber track expert. any special requirements or demands regarding​​​Remote Controlled RC Tracked Fire Fighting Robot or tracked vehicles, please let us know, we'll help you work it out.

​​All of our rubber track products are produced in China, we provide worldwide shipping service, no matter by air, sea, or courier.  If you need shipping to the door, please leave your address/port when you sent an inquiry to us.

WhatsApp

+8615350592434

MODEL: FR-136

All of  our rubber track products are produced in China, we provide world wide shipping service , no matter by air, sea or courier. Please leave your address / port when you sent inquiry to us.

​ Click here if you want to see our detailed specification of the tracked robot base.

REMOTE CONTROLLED RC FIRE FIGHTING ROBOT
